NASA’s National Transonic Facility can run at temperatures as low as -250°F (-157°C). That sounds like an attempt to test an airplane in impossible weather, but the cold serves a different purpose. Engineers use temperature and pressure to control how nitrogen flows around a model. The goal is to make a small test article reproduce the aerodynamic behavior of a much larger aircraft in flight.
NASA says the facility can accommodate models as small as one-fiftieth the size of an actual aircraft. Copying the outside shape at that scale is not enough. Airflow depends on the size of the object, the speed of the gas, its density, and its viscosity. A useful wind-tunnel test must account for those relationships rather than merely point a fan at a miniature airplane.
The airplane stays still while the air moves
Inside a wind tunnel, a model is mounted in a test section while controlled airflow passes around it. Instruments measure forces such as lift and drag, and researchers can observe where the flow separates or becomes turbulent. Relative motion is what matters: moving air past a stationary model can reveal how the model would behave while moving through still air.
The National Transonic Facility is a closed-circuit tunnel, so its test gas circulates through a loop. NASA lists an operating Mach-number range from 0.1 to 1.2, covering airflow from well below the speed of sound to slightly above it. Yet matching speed alone would not guarantee that a small model behaves like a full-size aircraft.
A small model creates a scale problem
Imagine shrinking an aircraft to one-fiftieth of its original size while leaving the gas unchanged. The model’s shorter length changes the balance between the gas’s momentum and its viscosity. That balance is summarized by a dimensionless quantity called the Reynolds number.
NASA’s wind-tunnel history explains the practical consequence: airflow over a scale model matches airflow over the full-size object only when the relevant Reynolds numbers match. If they do not, boundary layers, turbulence, and flow separation may appear differently. The model may have the right silhouette but produce the wrong aerodynamic story.
Cold nitrogen gives engineers another control
The National Transonic Facility addresses this problem with a combination of high pressure and cryogenic temperature. Its published operating range reaches 130 psi and -250°F, and it can use nitrogen rather than ordinary ambient air. Cooling and pressurizing the test gas change its physical properties, allowing operators to adjust the airflow for the size of the model.
The point is not simply that cold gas is “better.” The value comes from control. By changing temperature, pressure, and speed, engineers can approach the combination of Mach number and Reynolds number needed for a particular test. NASA therefore describes the facility as able to duplicate true flight aerodynamics and to adjust airflow to match model size.
What the illustration simplifies

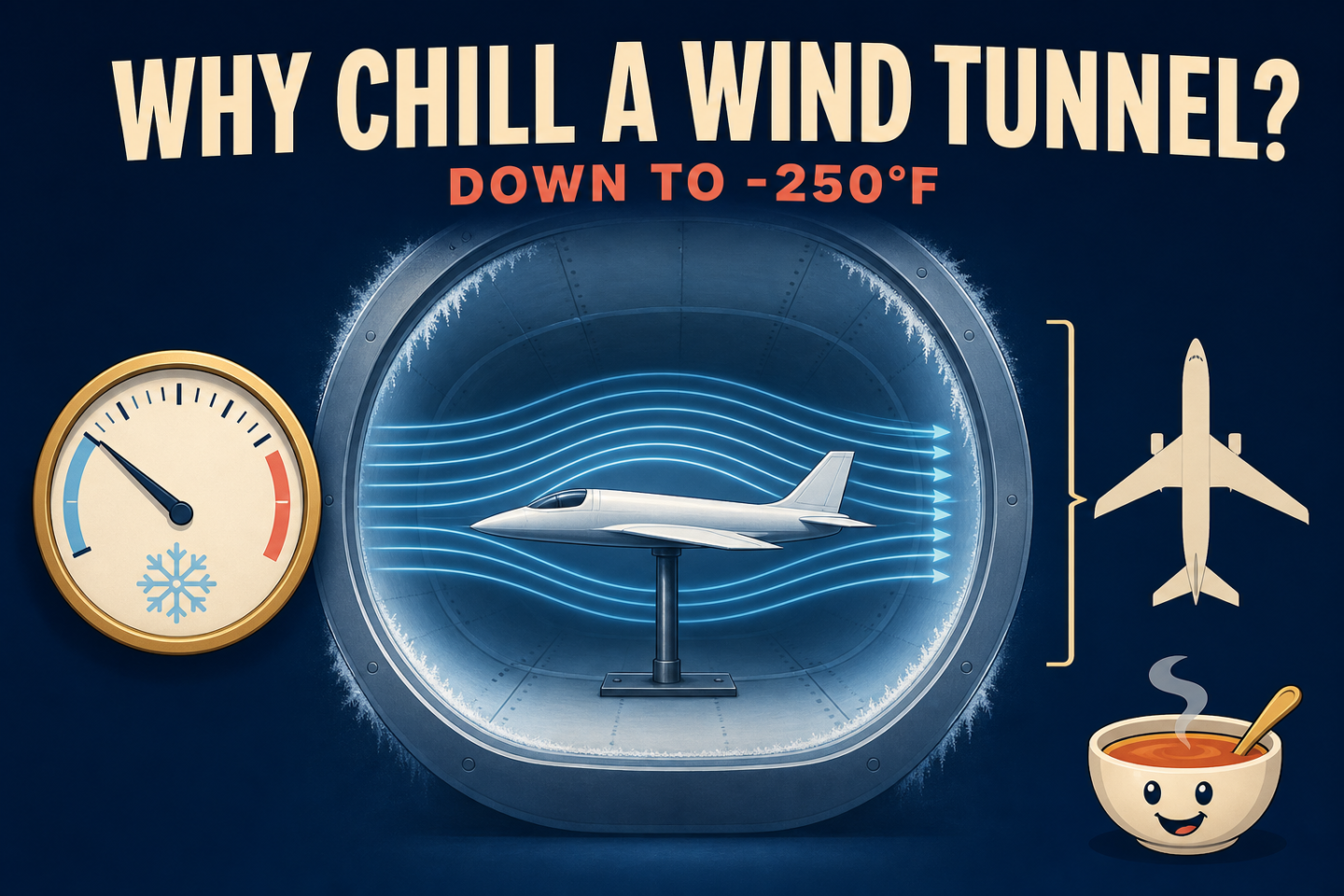

Our image uses glowing flow lines, frost, a temperature gauge, and two aircraft silhouettes to make the scale problem visible. Those are explanatory symbols, not a measured flow visualization or a diagram of the exact facility. The larger aircraft is outside the tunnel because it represents the full-size behavior engineers want the smaller model to reproduce.
The memorable temperature is real, but it is not the whole explanation. A cryogenic wind tunnel works because temperature joins pressure, speed, gas properties, and model size as part of one controlled experiment. The deep cold helps a small object tell engineers something trustworthy about a much larger machine.
